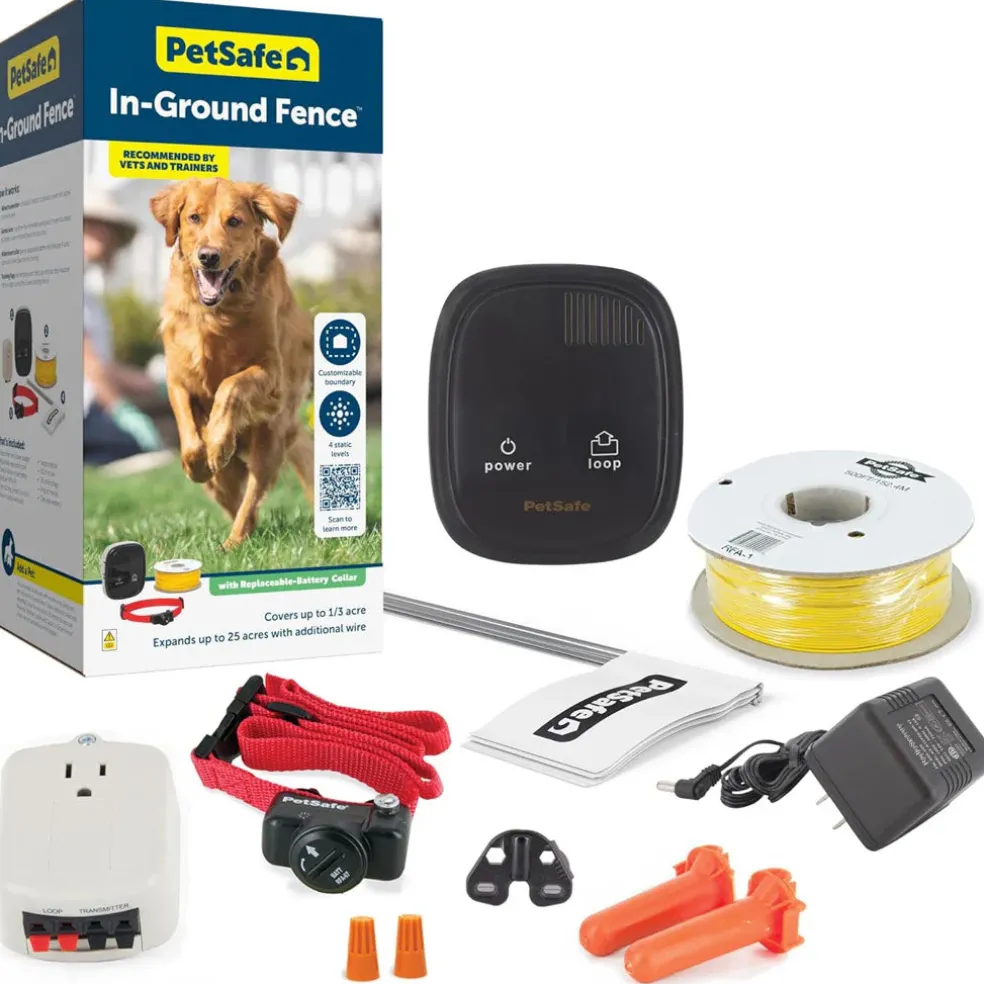

Secure Boundaries: PetSafe Dog Fence System

The advanced and reliable creation, the PetSafe In-Ground Pet Fence System, helps one to keep their dog safe and secure within their yard. It provides a buried wire that issues a non-painful, light correction when your pet comes closer to the fence boundary. This adjustable collar is made to be comfortable for your pet and lets out a warning beep, followed by a static correction if your pet proceeds further towards the boundary. The PetSafe In-Ground Fence System is ideal for dogs weighing over 8 pounds to train them on how to be within the safe areas set for them and leave them with the freedom to roam therein.

The PetSafe In-Ground Pet Fence System keeps your dog in your yard while providing security and adjustability. With the option of coverage expansion and an unlimited addition of pets with extra collars, this system fits perfectly for flexibility and can be tailored according to what any dog owner wants to provide for his pet to keep him free but safe.

Key Benefits:

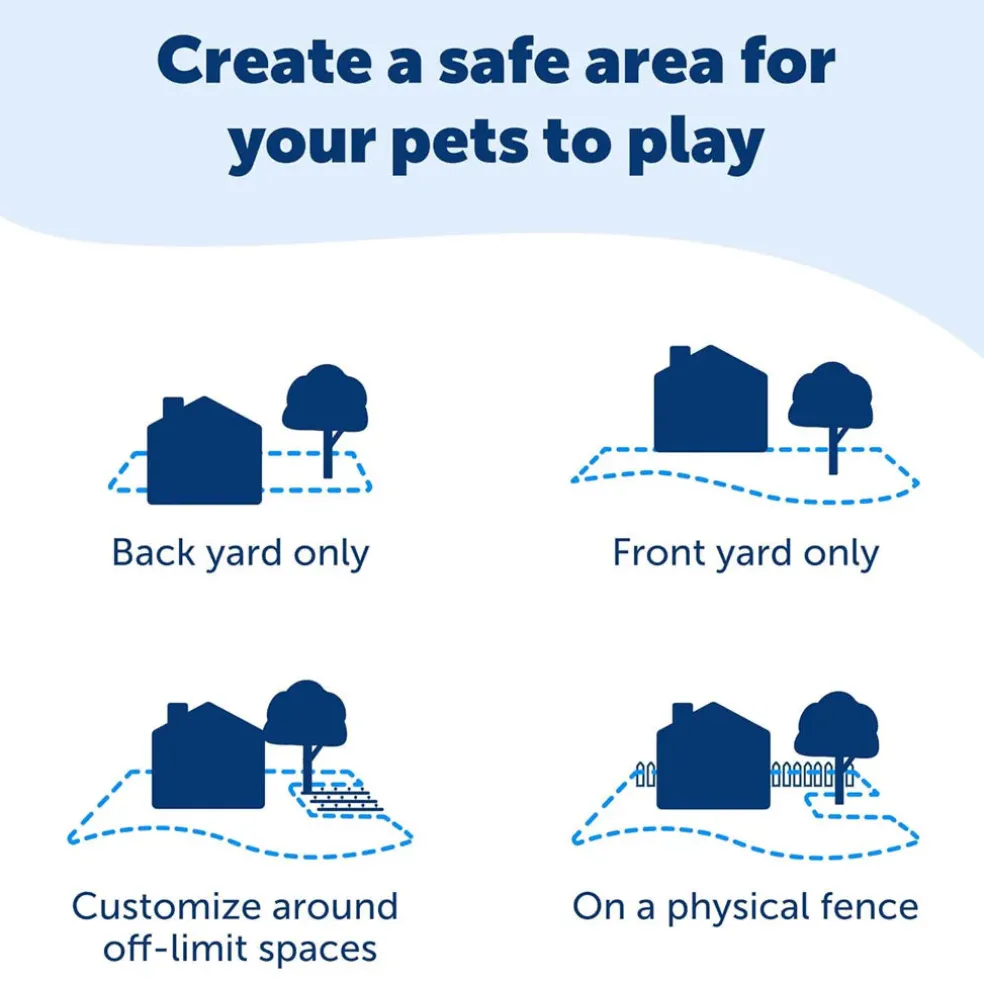

Customizable Boundary: Once set up, your system will have you create a custom-shaped boundary that contours the shape of your yard. Areas of several acres can be covered, with extra wire and flags.

Static Correction: If your dog approaches the boundary area, the collar delivers a safe, gentle static correction to remind him to stay within the established area that you have decided for him.

Adjustable Correction Levels: This system has adjustable correction levels. It ensures that the static response will be proper for your dog’s size, temperament, and motivation.

Audible Warnings: The warning beep of the collar before the static correction lets your dog know that they are arriving at the boundary line, where they can return by themselves.

Waterproof Collar: The collar is waterproof and important to be used in outdoor activities, most especially when weather conditions may be adverse.

Low Battery Indicator: The collar will give you a low battery indication to remind you every time the battery change is needed to be able to allow the system to work properly at all times.

Instructions:

Troubleshooting:

The Receiver Collar is not beeping or correcting.

Check the battery to make sure it is installed properly.

Check that both lights are lit on the Fence Transmitter. If not, perform the “System Test”

The Receiver Collar is beeping, but the pet is not responding to the Static Correction.

Test the Receiver Collar with the Test Light walking toward the Boundary Wire.

If the Test Light flashes, check the fit of the Receiver Collar.

Trim your pet’s fur where the Contact Points touch the neck and/or switch to the longer Contact Points.

Increase the Static Correction Level.

Repeat training steps to reinforce training.

The Receiver Collar has to be held on top of the Boundary Wire to activate.

Replace the battery.

Adjust the Boundary Width Control knob clockwise to increase the distance from the Boundary Wire that the Receiver Collar activates. Verify the Boundary Control Switch is placed at the proper setting according to the amount of Boundary Wire used.

If using a Double Loop, make sure Boundary Wires are separated at least 5 feet.

If the Receiver Collar still has to be held on top of the Boundary Wire, perform the “System Test”.

The Receiver Collar activates inside the house.

Turn the Boundary Width Control knob counterclockwise to decrease the distance from the Boundary Wire that the Receiver Collar activates.

Make sure the Boundary Wire is not running within 15 feet of the house. The signal can be transmitted through the walls of your house.

Make sure Boundary Wires are twisted from the boundary to the Fence Transmitter

The Receiver Indicator Light is flashing every 4 to 5 seconds and I have just installed a new battery.

To reset the low battery indicator, remove the battery from the Receiver Collar. Discharge all power by holding the correction level button down until the light is no longer illuminated. Reinstall battery.

I have an inconsistent signal.

Make sure the Fence Transmitter is at least 3 feet from large metal objects or appliances.

Make sure all Boundary Wire turns are gradual with a minimum 3-foot radius.

Make sure the Boundary Wire is not running parallel to and within 10 feet of electrical wires, neighboring containment systems, telephone wires, television or antenna cables, or satellite dishes.

If a neighboring containment system may be causing an inconsistent signal, move the Boundary Wire farther away from the neighboring containment system.

The Power and Loop Indicator Lights are off.

Check that the Power Adapter is plugged into the Fence Transmitter.

Check that the Power Adapter is plugged in properly.

If the system is plugged into a GFCI or RCD outlet, check to see if the circuit has been tripped. Reset the GFCI or RCD circuit if required.

Verify that the outlet is working properly by plugging in a known working item such as a radio.

Try plugging it into another 120-volt outlet.

If the lights still do not come on, the Fence Transmitter and/or Power Adapter need to be replaced.

If a Surge Protector is installed, unplug the Surge Protector and plug the power adapter directly into the outlet.

The Power Light is on, the Loop Indicator Light is off, and the Fence Transmitter loop alarm is sounding.

Check Boundary Wire connections at the Fence Transmitter for proper connection.

Check for broken or damaged Boundary Wires at the outside entry to the house.

Perform the “System Test” (page 26) to determine if the Fence Transmitter or Surge Protector needs to be replaced.

If the Fence Transmitter is functioning properly, you have a break in your Boundary Wire. See the “Wire Break Location Test” section in this guide.

FAQ

How does the PetSafe In-Ground Pet Fence System work?

The transmitter sends a radio signal through a wire buried around the perimeter of your property. Your dog wears a receiver collar that picks up the signal. When he approaches the boundary, he will receive a warning beep on his collar followed by a static correction if he continues.

Is the static correction safe for my dog?

Yes, the static correction is light and safe. It seeks to get your dog’s attention but without hurting them. The system is also integrated with a training mode using only tones.

Can the area of coverage be extended?

Yes, the starter kit covers an area up to 1/3 acres but you can extend it up to 25 acres with extra boundary wire and flags.

Is the transmitter collar waterproof?

Yes, the collar is waterproof; it’s perfect for any weather even if your dog likes playing with water.

How long does the battery last?

Generally, the battery life for the receiver collar would be 1-3 months, depending on usage.

What size dog is the system suitable for?

It is recommended for dogs over 8 pounds with neck sizes from 6 to 28 inches.

How hard is it to install?

Installation involves planning your layout, burying the wire around your perimeter, and hooking up the transmitter. It may take a whole weekend to complete, but very comprehensive instructions are given.

Can I use this system with more than one dog?

Yes, you can use it with an unlimited number of dogs by purchasing additional receiver collars.

What maintenance is required?

The owner should regularly check the integrity of the boundary wire, that the collar and transmitter are working correctly, and that the collar battery may need replacement from time to time.

Where can I buy additional accessories or replacement parts?

You can buy additional accessories and replacement parts directly through the website of PetSafe or at various pet supply stores.
